Correx Picking Bins from a Dedicated PP Hollow Board Factory
Zhejiang Zhapu Plastic Co., Ltd. is a China-based Correx Picking Bins manufacturer and supplier with over 15 years of experience in extruding and converting polypropylene corrugated sheet. Our bins are fabricated from 3–5 mm PP hollow board on our own extrusion lines, then die-cut, folded, and edge-sealed in our 13,333 m² facility. We supply stackable, nestable, open-front, and interlocking designs for warehouse order picking, e-commerce fulfilment, automotive assembly, electronics kitting, and postal sortation.
Because we control sheet extrusion and conversion in-house, we can adjust board thickness, dimensions, colour, printing, and structural details without intermediate handling. Every bin leaves our factory with verified dimensional accuracy and consistent fold quality, ready for immediate use or flat-pack shipment.
Our Correx Picking Bin Range
We produce several standard families, each engineered for a specific picking environment. All can be customised in size, colour, and printing.
| Bin Type | Design Features | Best Fit |
|---|---|---|

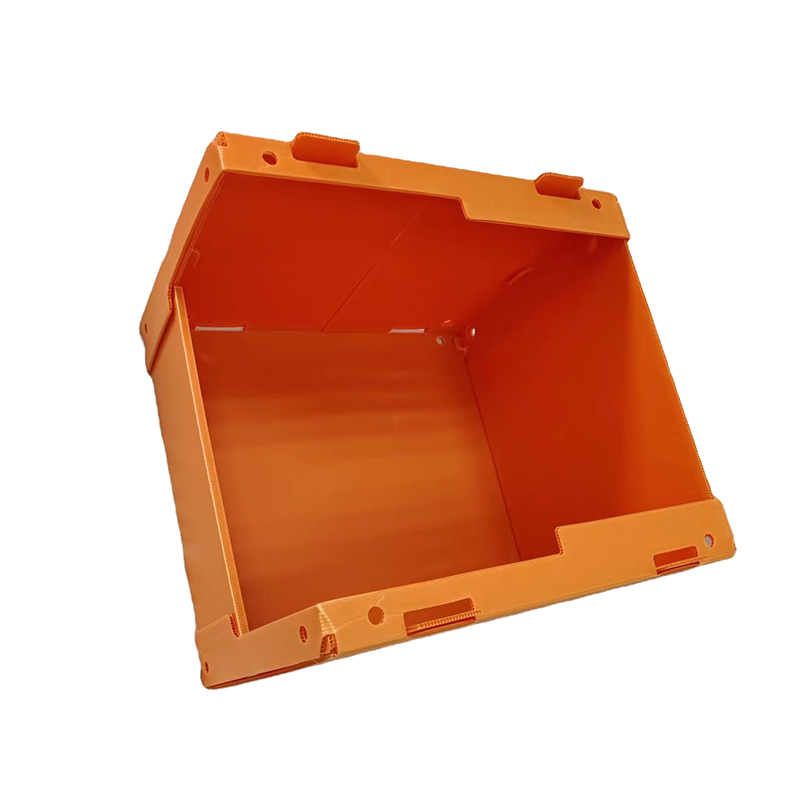

| Stackable Open Front | Angled front opening, interlocking edges, stable multi-level stacking | High-density shelving, rapid picking without removing bins |

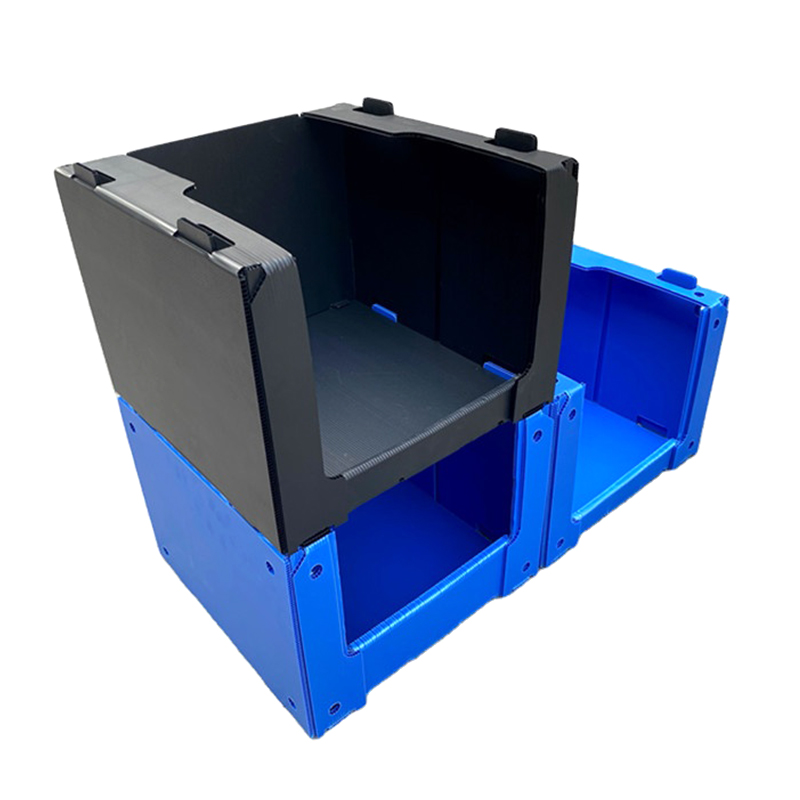

| Nestable Corflute | Tapered walls, nests when empty, stackable with optional lid | Transport and storage where empty bins must save space |

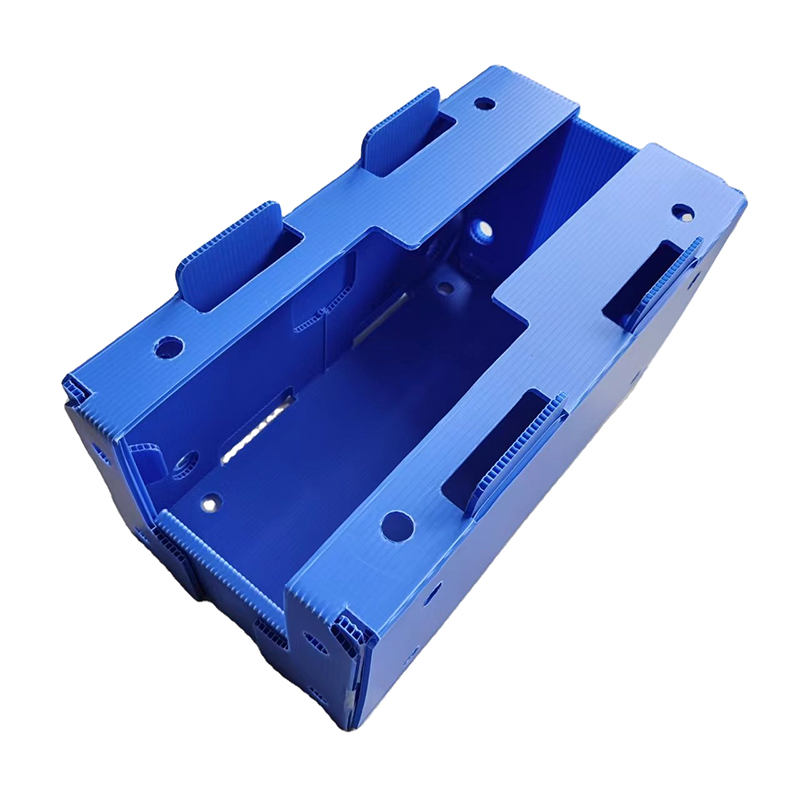

| Multi-Color Tote | Bright colours, reinforced edges, optional cardholders | Colour-coded inventory, zone routing, multi-SKU operations |

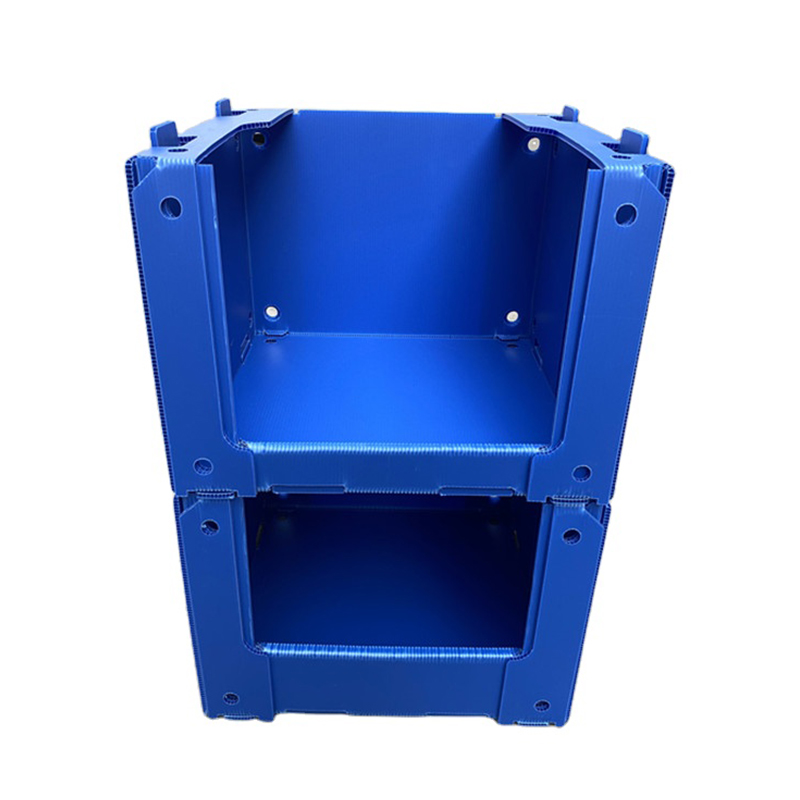

| Heavy-Duty Bin | Thicker board (up to 5 mm), reinforced base, high load capacity | Automotive parts, metal components, heavy workshop use |
| Side-Hole Stackable | Hand holes on sides for easy lifting, stackable design | Workstations and production lines where bins are carried frequently |
For detailed specifications of individual models, see our Stackable Open Front Correx Picking Bins and related product pages.
Material and Construction
All bins are made from virgin or recycled polypropylene (PP) corrugated sheet, also known as correx or corflute. The twin-wall fluted structure provides high stiffness-to-weight ratio, moisture resistance, and chemical inertness. We offer board thicknesses from 2 mm to 12 mm, but picking bins typically use 3–5 mm for optimal balance of rigidity and foldability.
- Standard grade: blue, red, yellow, green, grey, or custom colours for colour-coding.
- Anti-static / conductive: for electronics and ESD-sensitive component storage.
- Flame-retardant: for applications requiring reduced flammability.
- Food-grade: available on request for pharmaceutical or food-contact use.
Edges are heat-sealed or folded to prevent splitting, and we can add edge banding for extra durability. Printing options include silk-screen logos, barcode labels, and custom graphics using our water-based ink printing machine, which is the first environmentally friendly hollow board printer in Zhejiang Province.
Application Fit and Integration
Correx picking bins are used across many industries. Our customers integrate them into flow racks, shelving systems, and automated storage and retrieval systems (AS/RS). The bins are designed to fit standard rack openings, but we can adjust dimensions to match your existing infrastructure.
Common applications include:
- Warehouse order picking and e-commerce fulfilment
- Manufacturing parts storage at assembly workstations
- Retail stock rooms and back-of-store organisation
- Recycling sorting stations and postal sortation lines
- Pharmaceutical and electronics kitting operations
For automated lines, we can supply bins with consistent external dimensions and smooth surfaces for conveyor transport. Optional features like label holders, dividers, and dust covers support lean inventory management.
Customisation and Engineering Support
Our engineering team works from your required working dimensions, load capacity, and stacking height. We provide CAD drawings and samples before mass production. Customisation options include:
- Length, width, height, and board thickness tailored to your racking or tote system
- Colour matching for pick-by-colour or zone identification
- Silk-screen printing of logos, text, or barcodes
- Internal dividers, cardholders, and transparent dust covers
- Foldable designs that ship flat and assemble without tools
We also offer anti-static, conductive, and flame-retardant sheet grades for specialised environments. Our production lines can handle widths up to 2200 mm and any length, so we are not limited by standard sheet sizes.
Quality Assurance and Compliance
All products undergo SGS testing, and our factory holds ISO 9001 quality management, ISO 14001 environmental management, and ISO 45001 occupational health and safety certifications. We also have GRS certification for recycled content and a Green Product Certificate.
During production, we inspect raw material thickness, print registration, fold accuracy, and edge sealing. Each batch is checked for dimensional consistency and structural integrity before packing. We can provide test reports and certificates with your shipment on request.
Packaging, Delivery, and Maintenance
Bins can be supplied fully assembled or flat-packed to reduce freight volume. Flat-packed bins are easy to store and assemble on-site without tools. For export, we use sturdy cartons or pallets with protective corner boards to prevent damage during transit.
Maintenance is simple: wipe with mild detergent or rinse with water. PP is resistant to most chemicals and does not absorb moisture, so bins remain hygienic after repeated use. Spare parts such as dividers or lids can be ordered separately.
Information We Use to Configure Your Solution
To prepare a precise quotation and drawing, please provide the following details:
- Internal or external dimensions (L×W×H) and required board thickness
- Load capacity per bin and stacking height
- Colour and printing requirements (logo, barcode, or text)
- Quantity and delivery destination
- Any special material properties (anti-static, flame-retardant, food-grade)
- Reference to your racking or shelving system, if applicable
With this information, we can recommend the most suitable bin type and provide a sample for approval before mass production.
Frequently Asked Questions
What is the minimum order quantity for custom correx picking bins?
Our MOQ is typically 500 pieces for standard sizes, but we can discuss lower quantities for sample orders or pilot runs. Contact us with your requirements, and we will confirm the MOQ based on the design and material.
Can you match the bins to our existing racking system?
Yes. Send us the internal dimensions of your racks or shelves, and we will adjust the bin width, depth, and height to ensure a snug fit. We can also provide a CAD drawing for your approval.
Are your bins suitable for automated picking systems?
Yes, we can produce bins with tight dimensional tolerances and smooth external surfaces for conveyor or robotic handling. Specify your automation requirements, and we will design accordingly.
Do you offer anti-static or conductive bins for electronics?
Yes, we supply anti-static and conductive PP sheet grades that meet ESD protection needs. These bins are available in various colours and can be printed with ESD warning labels.
How do you ensure quality consistency across large orders?
We follow ISO 9001 procedures and perform in-process inspections on every batch. We also test samples from each production run for dimensional accuracy and load capacity before shipping.
Related Products and Categories
Our portfolio also includes View More, Wholesale Multi Color Corflute Warehouse Picking Tote Company for applications with different operating ranges, interfaces or integration requirements.
